CubeVue Software

CurveBeam’s CubeVue software provides powerful visualization tools to enhance dataset analysis.

Cubevue 4 Panel

CurveBeam’s CubeVue software provides powerful visualization tools to enhance dataset analysis, giving you intuitive interpretation and treatment planning tools at your fingertips.

Basic Visualization Tools:

  • Zoom, pan and adjust window levels
  • Perform distance and angle measurements
  • Save case work ups
  • Compare two studies side by side
  • Create DICOM or JPEG images from any window, including 3D

ADVANCED VISUALIZATION TOOLS

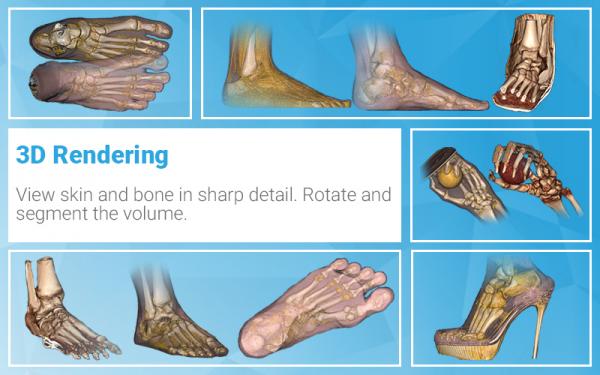

3D Renderings

  • Adjust the density threshold to slide from skin surface to bone to underlying hardware.
  • Free-rotate to examine anatomy from various angles
  • Create custom cuts
  • Segment bones for unobstructed views of joint surfaces

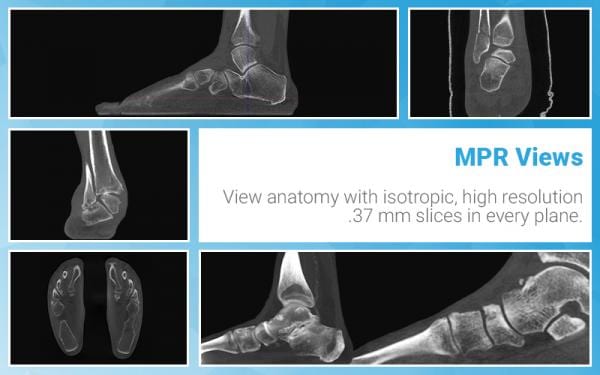

MPR Presentation

  • Synced navigation of coronal, axial and sagittal slices
  • Adjust slice thickness to create custom slabs
  • Create oblique cuts to easily assess the metatarsal parabola

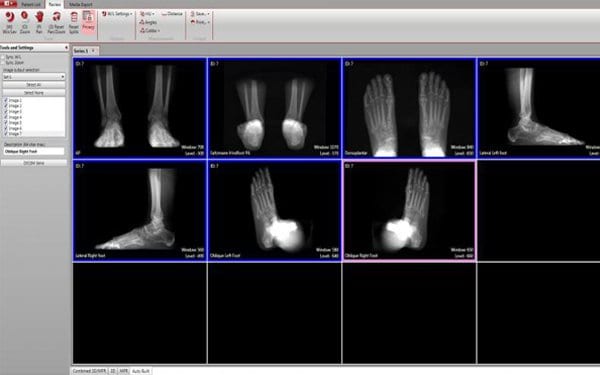

Insta-X

  • Digitally reconstructed X-Rays created from the CT data
  • Window-level
  • Free of projection and rotation error
  • Infinite views can be created from one CT scan
  • Save as individual DICOM
CUBEvueAUTOMETRICSscreenSMALL
CUBEvueAUTOMETRICSscreenSMALL
  • Secure, zero-footprint web app
  • Segment anatomy with little to no manual input
  • Generate PDF reports
  • Export segmented datasets as .STL

Research licenses are anticipated to be available April 2020.

CubeVue Autometrics is a ground-breaking web-based platform for automatic foot & ankle measurements of 3D volumes. CubeVue Autometrics employs a deep machine learning model that accurately segments and identifies complex foot bone structures with little or no human intervention.

Read the official press release on DOTmed
